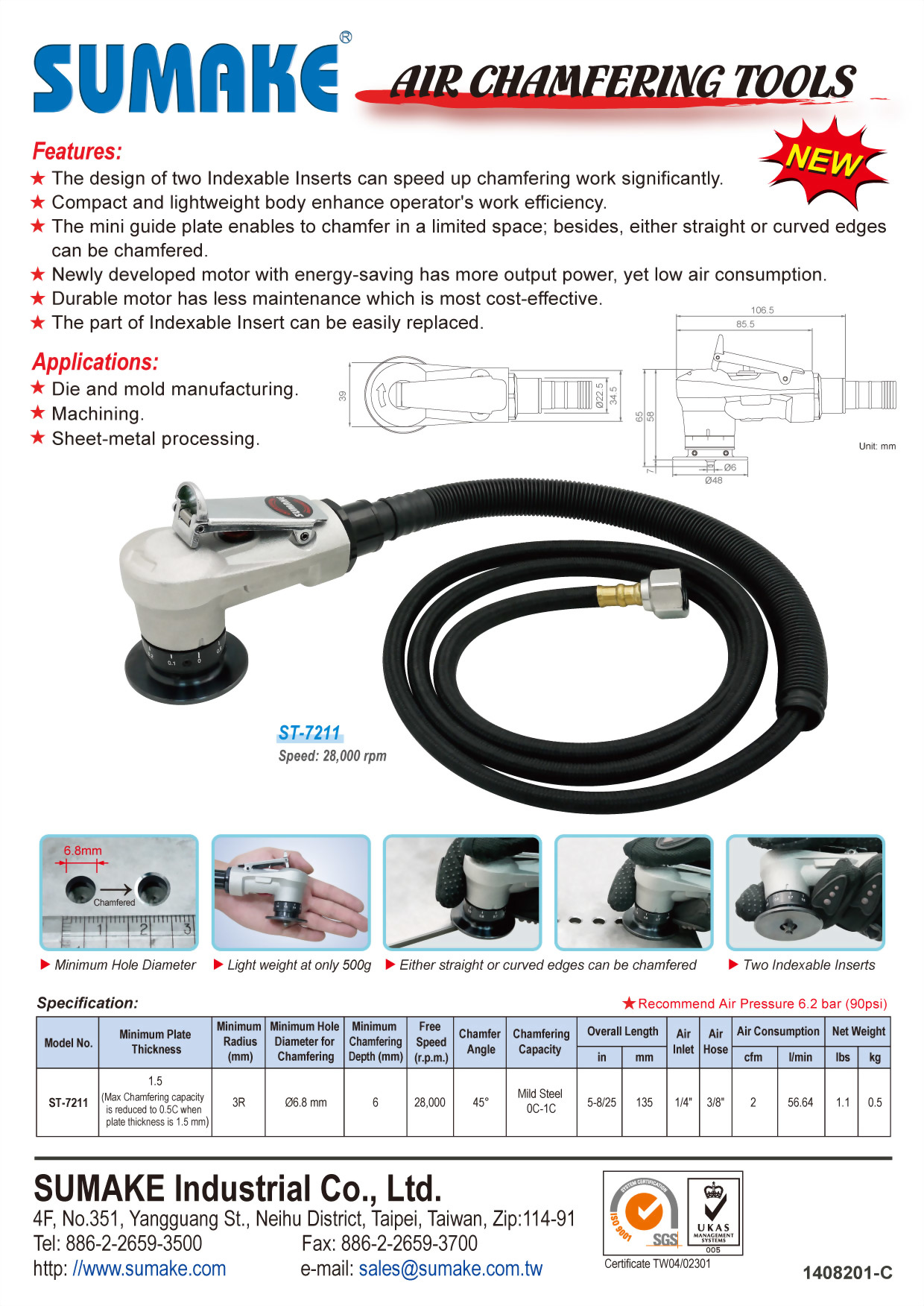

木と金属のための小型軽量エア面取り用切削工具
木と金属のための小型軽量エア面取り用切削工具
|
Model# |
ST-7211 |
|
Minimum Plate Thickness |
1.5mm |
|
Minimum Radius |
3R mm |
|
Minimum Hole Diameter for Chamfering |
Ø 6.8 mm |
|
Minimum chamfering Depth |
6 mm |
|
Free Speed |
28,000 r.p.m |
|
Chamfer Angle |
45 degree |
|
Chamfering Capacity |
Mild Steel 0C~1C |
|
Overall Length |
5-8/25"(135mm) |
|
Air Inlet |
1/4" |
|
Air hose |
3/8” |
|
Air Consumption |
2 cfm |
|
Net Weight |
1.1 lbs(0.5 kgs) |
Packing: 1set/box, 10sets/Ctn/8 kgs/1.1 cuft
Features:
♦ The design of two indexable inserts can speed up chamfering work significantly.
♦ Compact and lightweight body enhance operator’s work efficiency.
♦ The mini guide plate enables to chamfer in a limited space; besides, either straight or curved edges can be chamfered.
♦ Newly developed motor with energy-saving has more output power, yet low air consumption.
♦ Durable motor has less maintenance which is most cost-effective.
♦ The part of Indexable Insert can be easily replaced.
Application:
♦ Die and mold manufacturing.
♦ Machining.
♦ Sheet-metal processing.
