  • ブラシレスカウンター内蔵型のフルオートシャットオフdc40vレバースタート電動ドライバー(6ピン)を

ブラシレスカウンター内蔵型のフルオートシャットオフdc40vレバースタート電動ドライバー(6ピン)を

モデル : EA-BD630L/C6

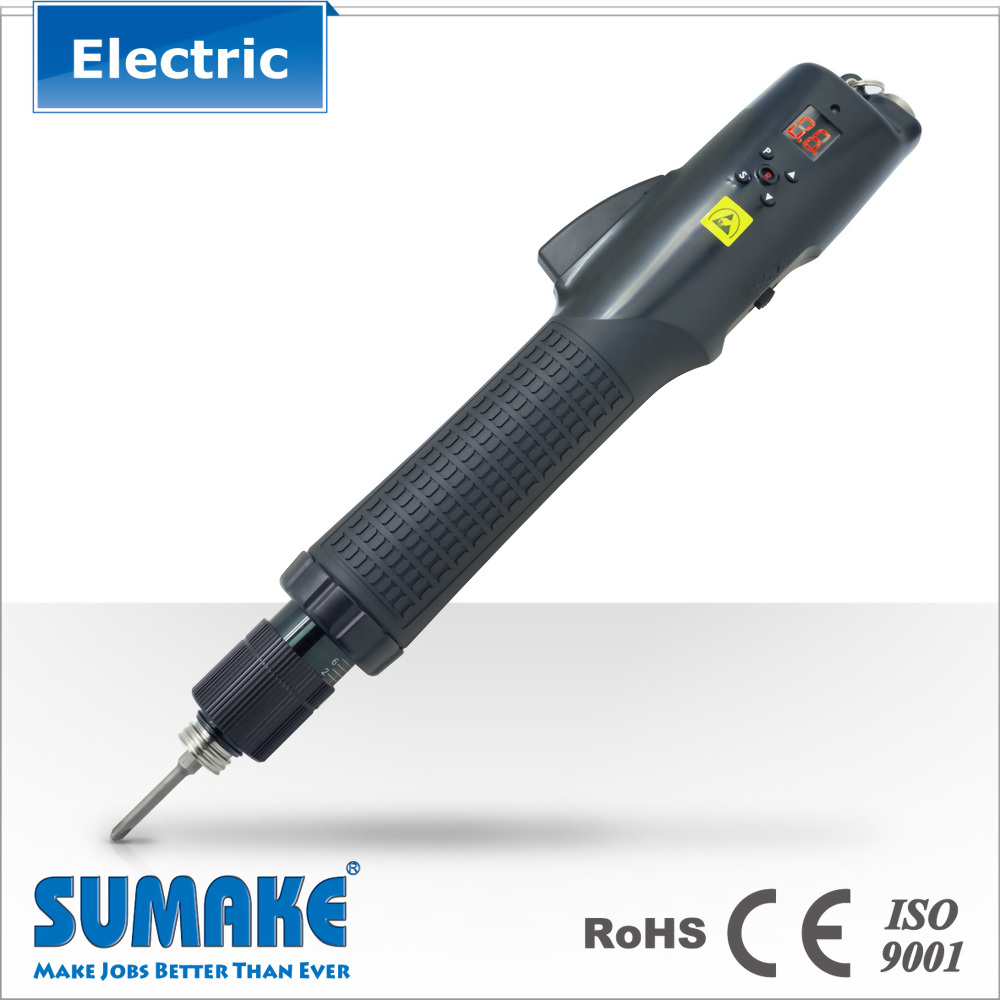

BRUSHLESS COUNTER BUILT-IN TYPE FULL AUTO SHUT-OFF DC40V
LEVER-START ELECTRIC SCREWDRIVER (6PIN)

Model # EA-BD630L/C6



Model #

EA-BD630L/C6

Torque Range

 10-30 kgf-cm

(8.86-20.04 lbf-in, 0.98-2.94 Nm)

Uploaded Speed

 1,000 r.p.m.(HIGH)

Available Screw Machine Screw Ø

2.6-4.0 mm (0.10-0.16")

Available Screw Tapping Screw Ø

 2.6-3.5 mm (0.10-0.14")

Weight

 840 g (1.84 lb)

Length

 303 mm (11.9")

Power source

 DC40V

Power consumption

 90W

Bit Type

 HEX 5mm, 6.35mm/ Ø4mm, Ø5mm


* With CE certification.

Recommend: To be ordered with the POWER SUPPLY
#SP-B40S500T/C6 (Refer the below photo)
proimages/2013ES-07.jpg
proimages/BRUSHLESS.jpg

proimages/P.8.jpg


*
Innovative Brushless motor design eliminates carbon dust and low noise pollution; results in low maintenance.



* Torque range from 1.5 kgf-cm~50 kgf-cm cover small & medium screwdrivers. Widespread and extensively applied byuser.



* Compact LED counter built-in: easy to operate; complete function; user can set up the counter according to needs of work and leave system automotive to inspect the precision od fastening screws.



* Suitably used on production line and effectively control numbers of fastening screws and operation quality.



* Automatic learning can count complete necessary time from start to fastening; user can select another wire to connect PLC if necessary.



* Two-color housing; ergonomic design; easy to grip.



* Torque Accuraney +- 3%
